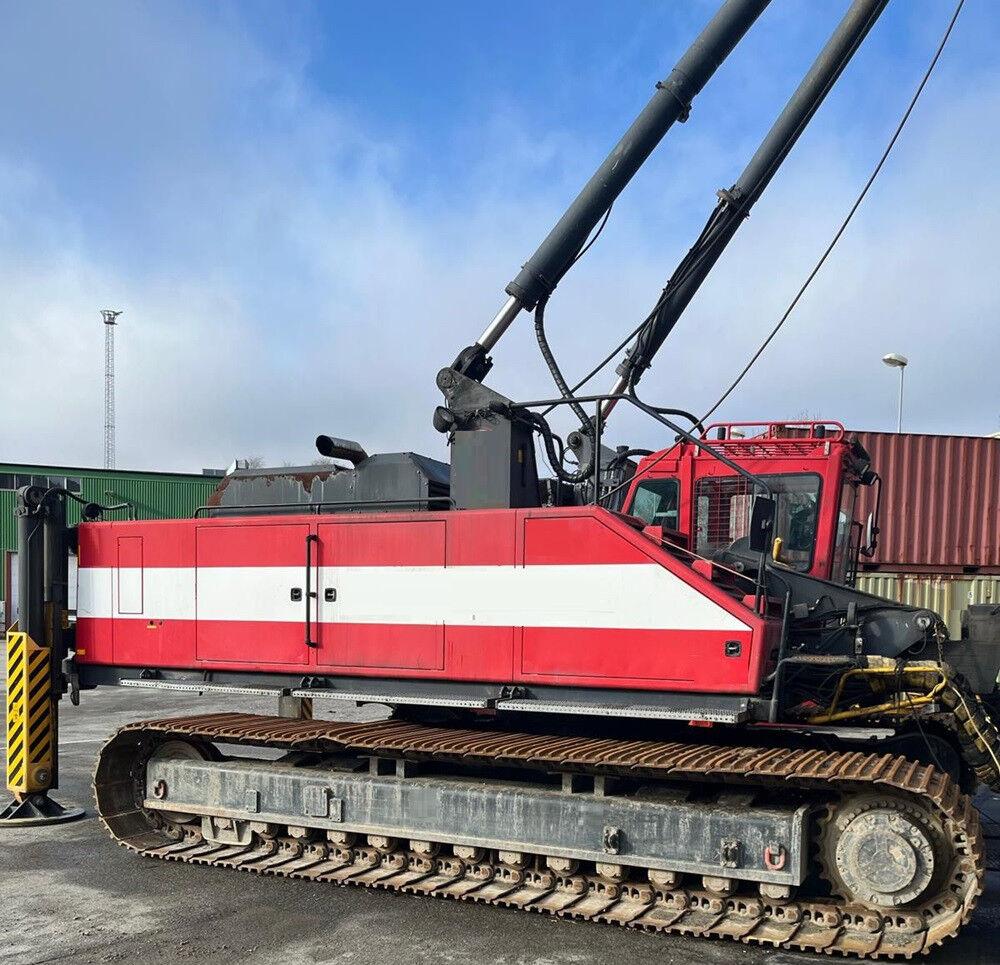

Junttan PM25LC

---

year: 2009
running hours: 7,200 m/h


price: Price on request
Machine location: Europe
With HHK 7/9S hammer
Leader length 13,8 + 4.2 + 3.6m
Top cathead
Hydraulic pile arms
Horizontal movement 1500mm
Capacity 20 000 kg
Telescope movement 4m
Inclinations according to separate capacity table
Hammer winch Zollern 15tn
Pile winch BB7 capacity 10tn
Cummins QSM 11L
Tier 3 Engine
Hydraulic tank capacity 670 l
Fuel tank capacity 420L
Neste VG 46 mineral hydraulic oils
Rear legs 2 pcs
Counterweight 6 000 + 2 000 kg hydraulically movable 1500mm
Under carriage track pads 900 mm wide
triple grouser type
Crawler length 5700 mm
min. width 3480 mm
max. working width 4700 mm
Safety cabin (FOPS tested)
Lockable vandal protection covers
Walking board around the cabin
PCD-2 Energy measuring device readiness
